ITE高清晰度电视系统超级循环测试卡

时间:2017-02-24    热度:450

品牌:DNP/Sine Image
型号:ITE
尺寸:310×200MM
比例:16:9
类型:透射式

简介

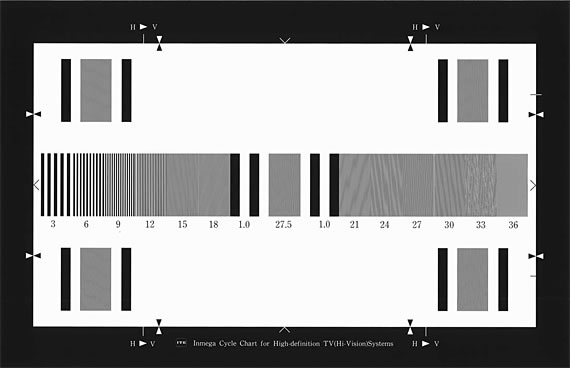

这是一个测试卡用以评估一个成像装置的水平分辨率。在测试卡中,白色和黑色条纹从1MHz到36MHz频率垂直排列。

此外,在中心和每个角有800TV(27.5MHz)楔块。

此图仅适用于透明型。

尺寸


  有效区域 外形尺寸
透明型 272×153 310×200

This is a Test Chart to evaluate the horizontal resolution of an imaging device. In the chart image, white and black fringes from 1MHz to 36MHz in image frequency arranged vertically.

Also at the center and at each corner 800TV(27.5MHz) of wedges are formed.

This chart is only available for Transparent Type.


  Effective Area Outer Size
Transparent Type 272×153 310×200
